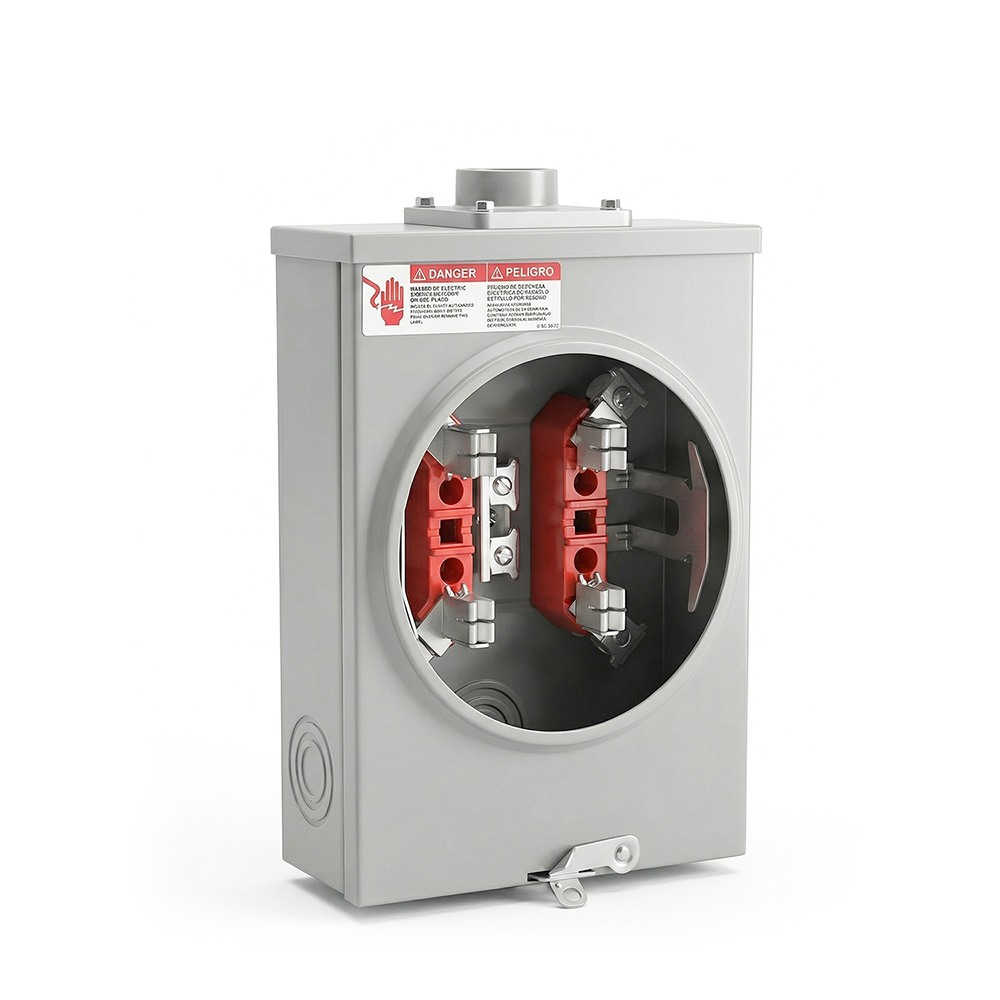

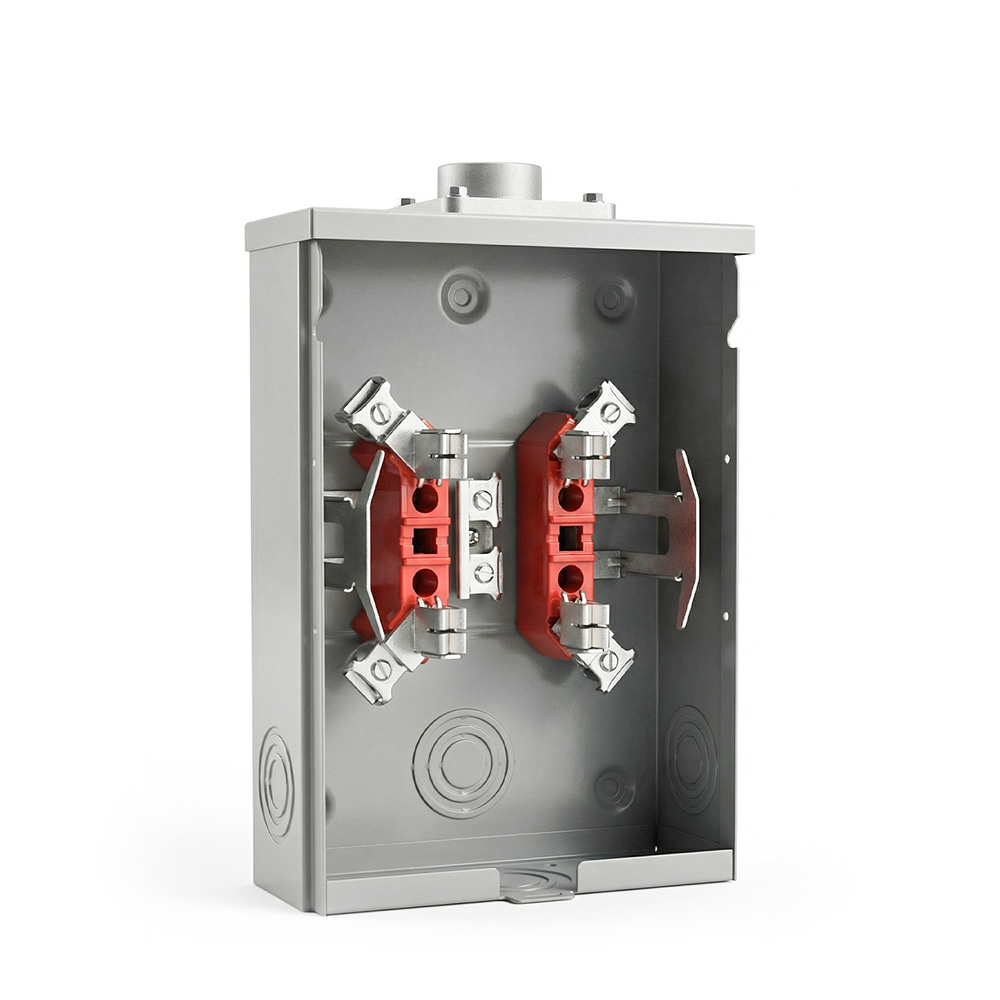

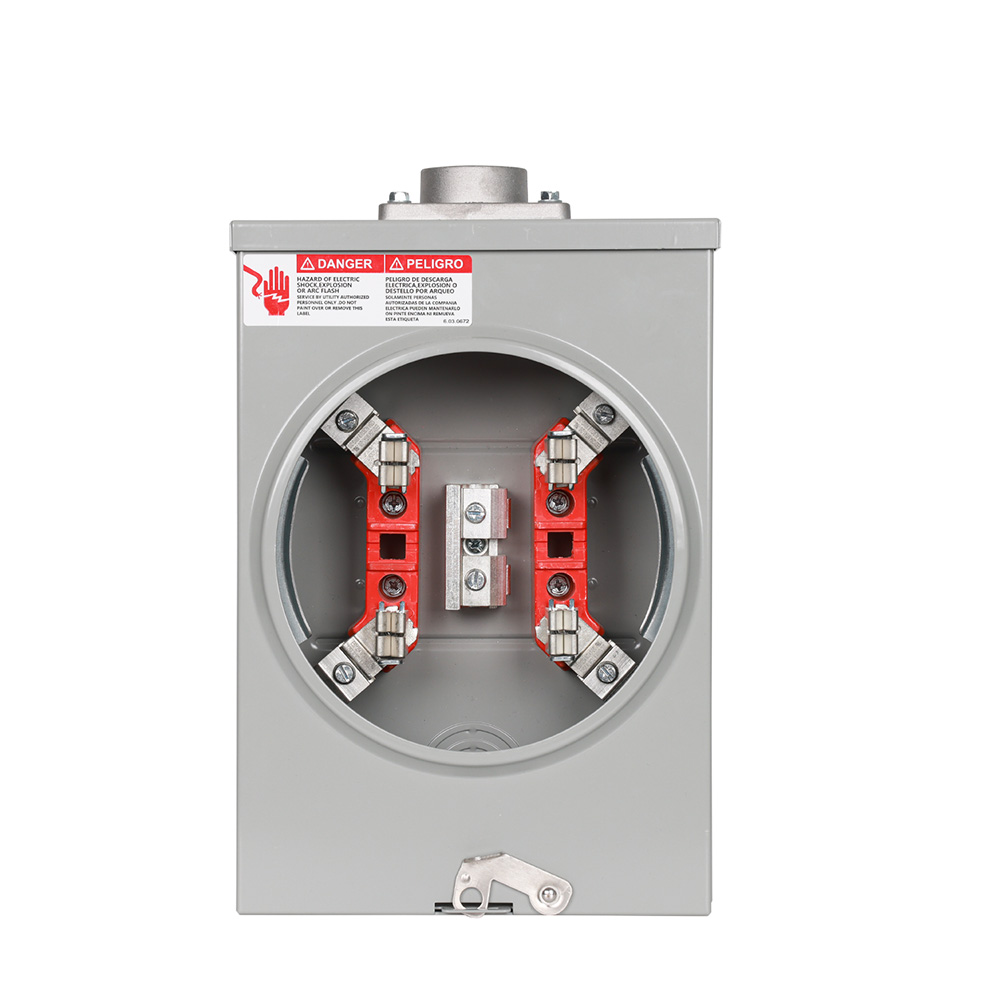

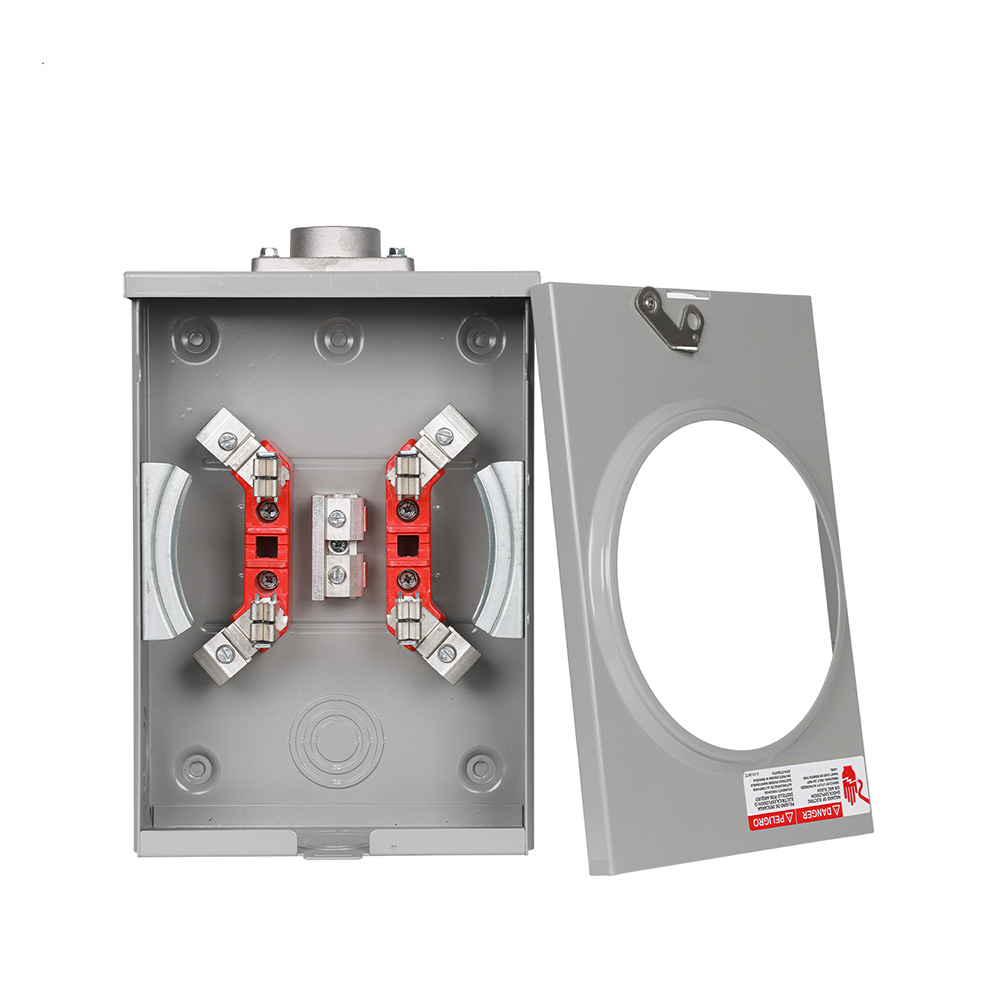

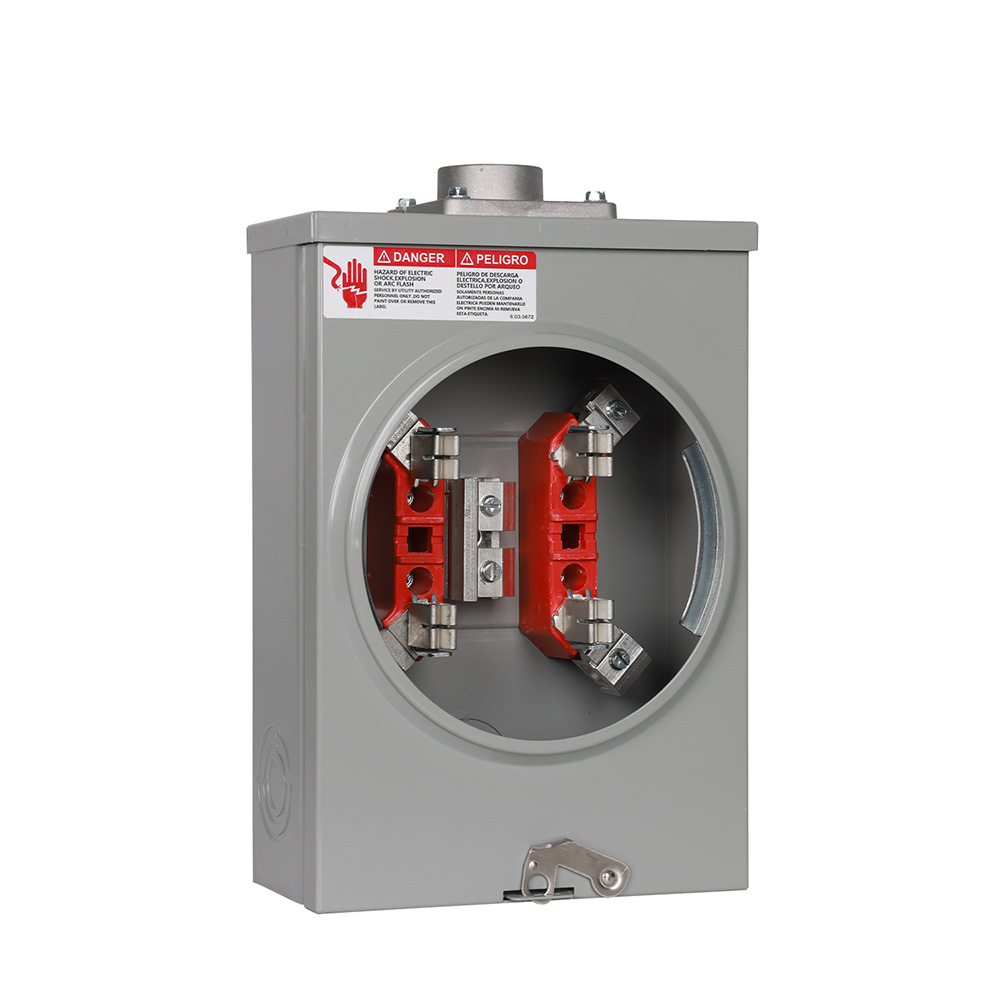

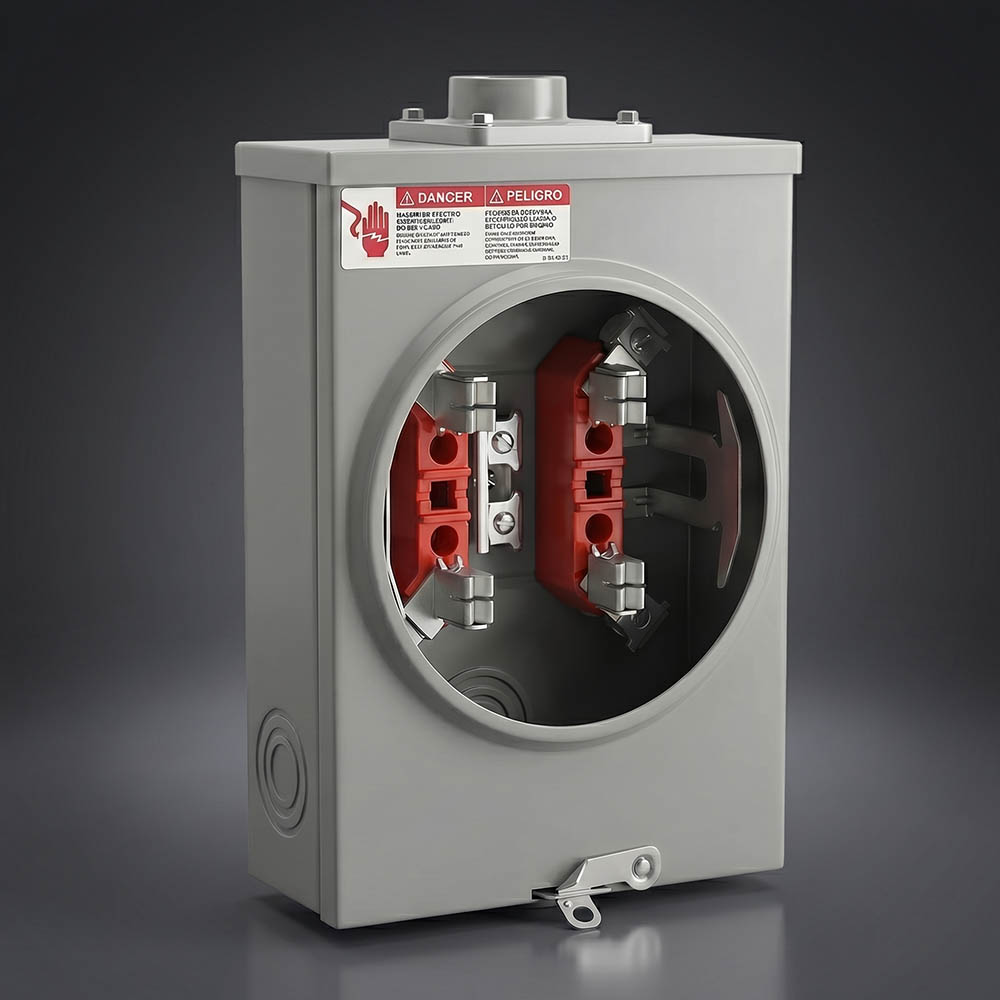

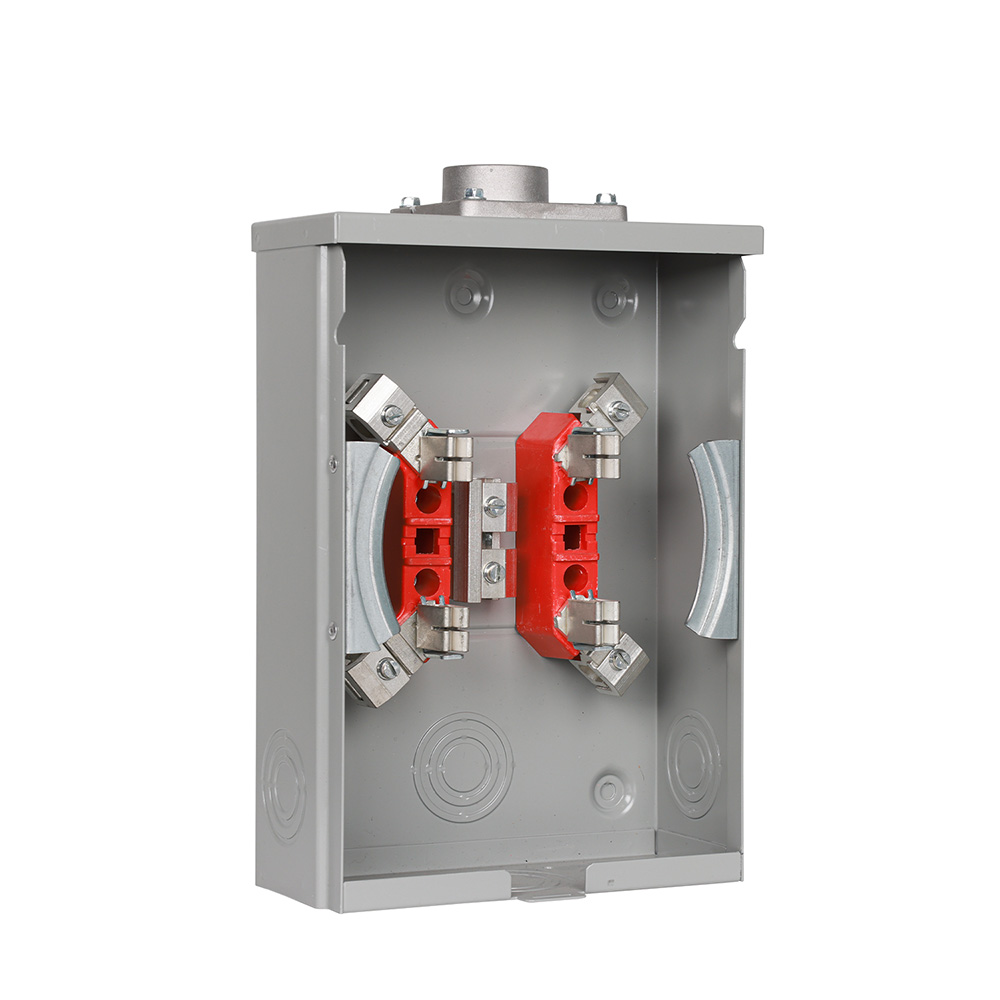

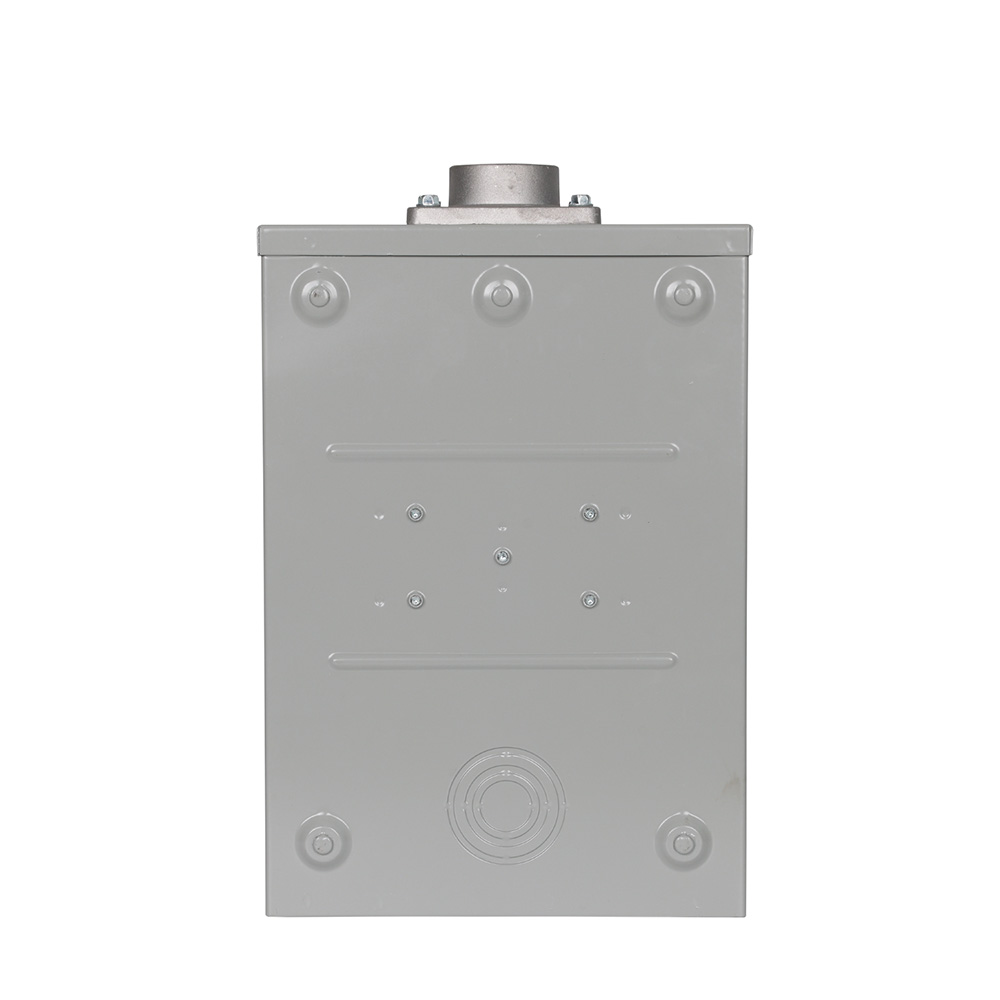

MT-125S Series Meter Socket
Meto has been a market leader in electrical metering equipment, setting the standard in quality, for 17 years and counting. There are hundreds of available configurations, including a range of sizes as well as various knockout, terminals and bypass options.
Products also have a variety of selections for hubs, locks and connectors. Meto has the socket you need with thousands of active products to meet your utility’s requirements.
Power Distribution One-Stop Solution
Full Qualifications, Ready For Your Tender
Direct Purchase Of Raw Materials, Automated Production Line
Delivery Schedule Is Stable And Supports Large-scale Orders
Provide Domestic And International Certifications As Well As Product Test Reports
24-hour Professional Team Is Available To Serve You
Product Overview
Meto has been a market leader in electrical metering equipment, setting the standard in quality, for 17 years and counting. There are hundreds of available configurations, including a range of sizes as well as various knockout, terminals and bypass options. Products also have a variety of selections for hubs, locks and connectors. Meto has the socket you need with thousands of active products to meet your utility’s requirements.
Application
- Residential and light commercial utility metering
- Durable Enclosure Material: Constructed from galvanized steel with outdoor powder coating for corrosion resistance.
- Flexible Jaw Configuration: Available in optional 4-jaw or 5-jaw configurations to suit various meter types.

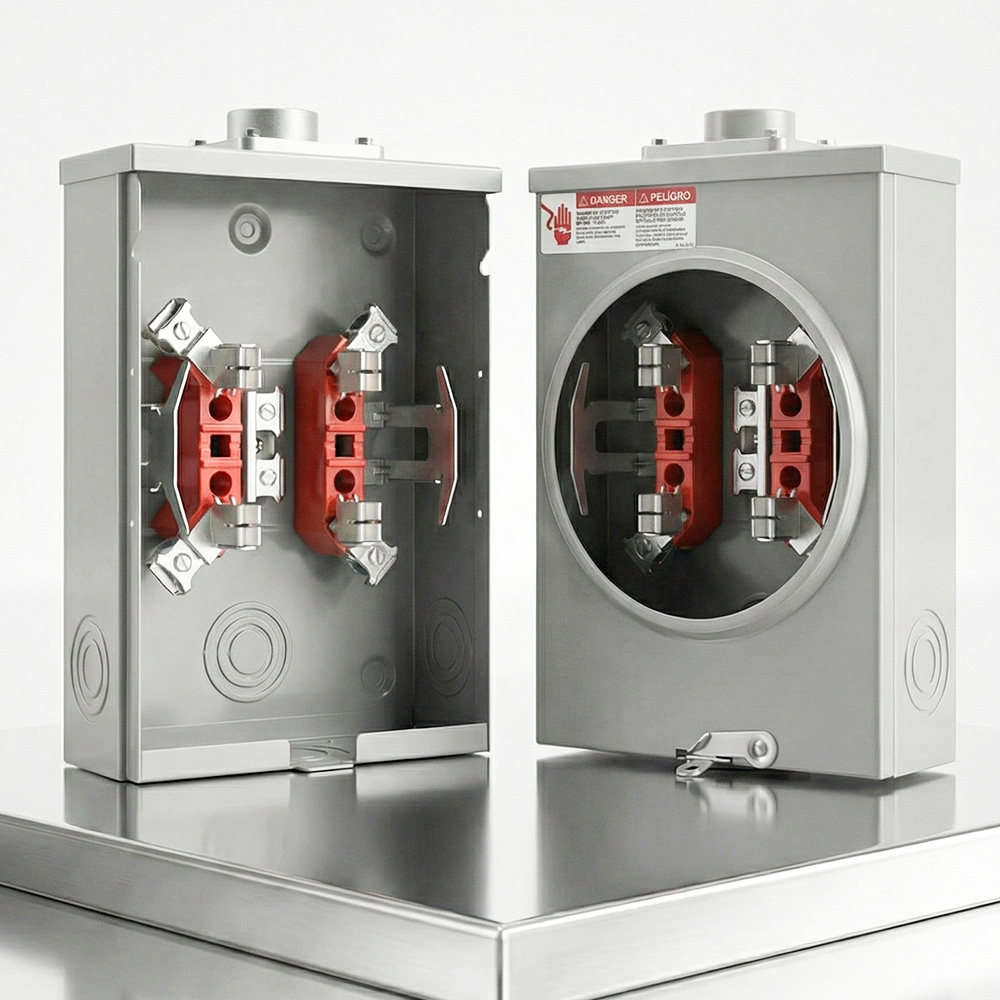

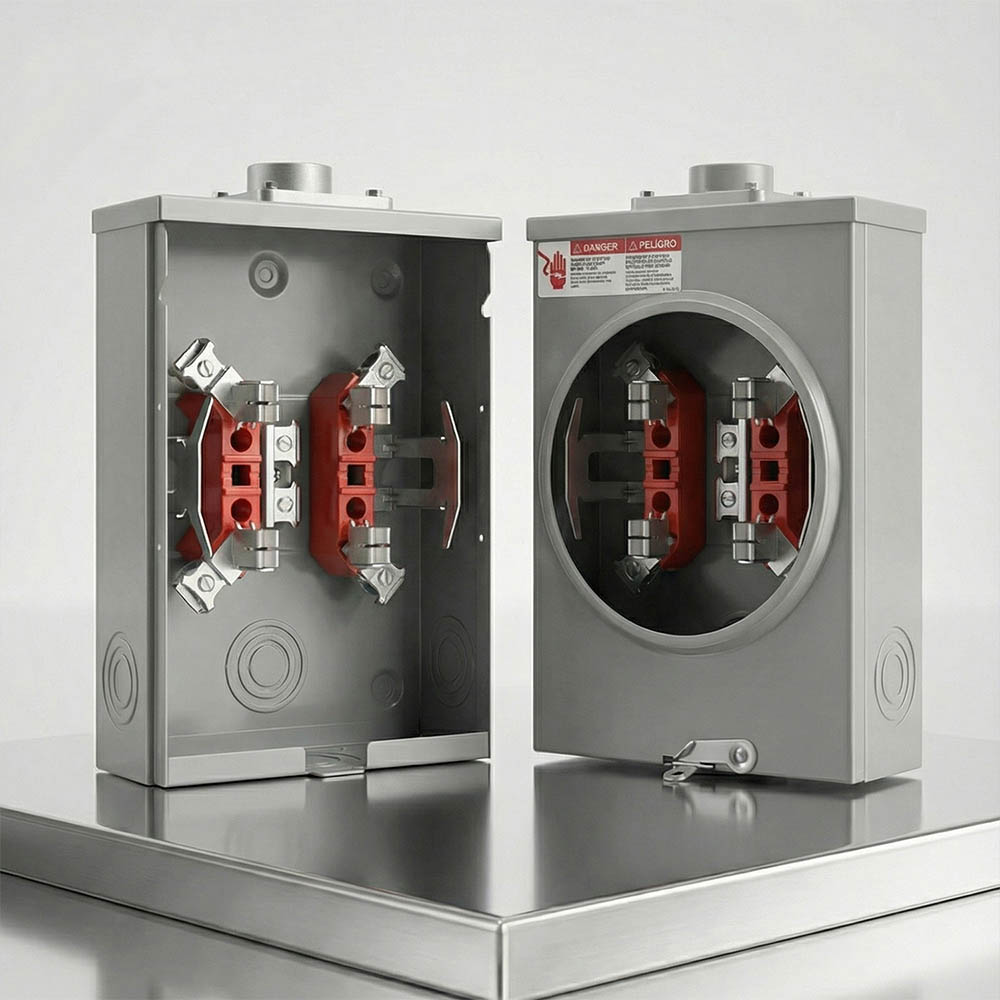

- Versatile Socket Design: Offered in both ring-type and ringless designs for different security and access needs.
- Customization Options: Customization from samples available for specific product selection requirements.
- Wide Voltage Compatibility: Rated for 120/240V AC single-phase operation suitable for residential and light commercial use.

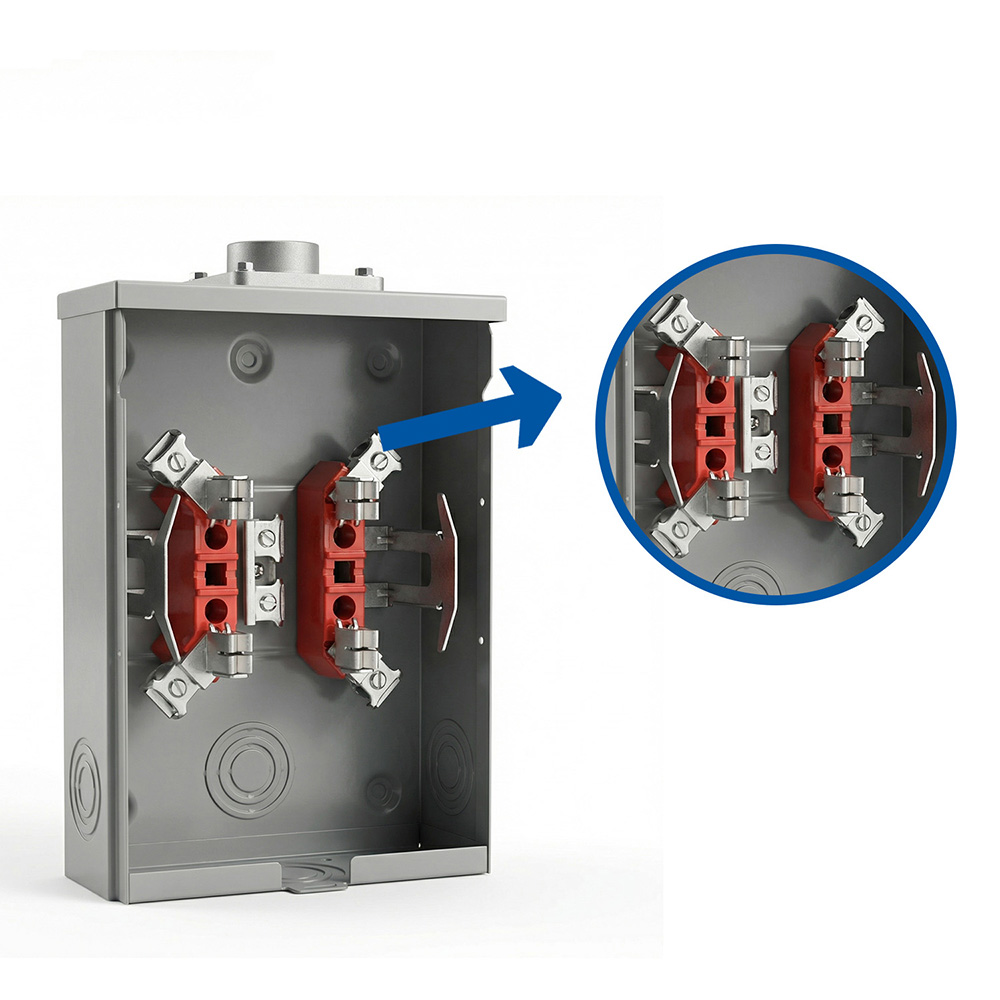

- Robust Terminal System: Features mechanical lugs with phosphor copper parts for secure and reliable connections.
- Flexible Hub Provision: Optional top and bottom hub openings allow for versatile conduit installation.
Features and Advantages
TRUST & COOPERATION
SECURE TRANSACTIONS
GLOBAL NETWORK
BUSINESS GROWTH
PROFESSIONAL SUPPORT
TECHNICAL EXPERTISE
Technical Parameters
| Parameter | Specification |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Phase | 1 Phase |
| Frequency | 60Hz |
| Number of Positions | Single Position |
| Jaw Configuration | 4-Jaw |
| Socket Type | Ring |
| Bypass Type | Non-Bypass / Horn Bypass optional |
| Mounting Type | Surface Mount |
| Enclosure Material | Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Terminal Type | Mechanical Lug |
| Conductor Range | Al/Cu, as required |
| Hub Provision | Top / Bottom hub opening optional |
| Grounding | Ground / Neutral provision available |
| Cover Type | Lockable Cover |
| Application | Residential / Light Commercial |
| Certification | UL Listed / Certification Pending |
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
| Parameter | Specification |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Phase | 1 Phase |
| Frequency | 60Hz |
| Number of Positions | Single Position |
| Jaw Configuration | 5-Jaw |
| Socket Type | Ring |
| Bypass Type | Non-Bypass / Horn Bypass optional |
| Mounting Type | Surface Mount |
| Enclosure Material | Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Terminal Type | Mechanical Lug |
| Conductor Range | Al/Cu, as required |
| Hub Provision | Top / Bottom hub opening optional |
| Grounding | Ground / Neutral provision available |
| Cover Type | Lockable Cover |
| Application | Residential / Light Commercial |
| Certification | UL Listed / Certification Pending |
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
| Parameter | Specification |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Phase | 3 Phase |
| Frequency | 60Hz |
| Number of Positions | Single Position |
| Jaw Configuration | 7-Jaw |
| Socket Type | Ring |
| Bypass Type | Non-Bypass / Horn Bypass optional |
| Mounting Type | Surface Mount |
| Enclosure Material | Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Terminal Type | Mechanical Lug |
| Conductor Range | Al/Cu, as required |
| Hub Provision | Top / Bottom hub opening optional |
| Grounding | Ground / Neutral provision available |
| Cover Type | Lockable Cover |
| Application | Residential / Light Commercial |
| Certification | UL Listed / Certification Pending |
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
| Parameter | Specification |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Phase | 1 Phase |
| Frequency | 60Hz |
| Number of Positions | Single Position |
| Jaw Configuration | 4-Jaw |
| Socket Type | Ringless optional |
| Bypass Type | Non-Bypass / Horn Bypass optional |
| Mounting Type | Surface Mount |
| Enclosure Material | Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Terminal Type | Mechanical Lug |
| Conductor Range | Al/Cu, as required |
| Hub Provision | Top / Bottom hub opening optional |
| Grounding | Ground / Neutral provision available |
| Cover Type | Lockable Cover |
| Application | Residential / Light Commercial |
| Certification | UL Listed / Certification Pending |
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
| Parameter | Specification |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Phase | 1 Phase |
| Frequency | 60Hz |
| Number of Positions | Single Position |
| Jaw Configuration | 5-Jaw |
| Socket Type | Ringless optional |
| Bypass Type | Non-Bypass / Horn Bypass optional |
| Mounting Type | Surface Mount |
| Enclosure Material | Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Terminal Type | Mechanical Lug |
| Conductor Range | Al/Cu, as required |
| Hub Provision | Top / Bottom hub opening optional |
| Grounding | Ground / Neutral provision available |
| Cover Type | Lockable Cover |
| Application | Residential / Light Commercial |
| Certification | UL Listed / Certification Pending |
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
| Parameter | Specification |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Phase | 3 Phase |
| Frequency | 60Hz |
| Number of Positions | Single Position |
| Jaw Configuration | 7-Jaw |
| Socket Type | Ringless optional |
| Bypass Type | Non-Bypass / Horn Bypass optional |
| Mounting Type | Surface Mount |
| Enclosure Material | Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Terminal Type | Mechanical Lug |
| Conductor Range | Al/Cu, as required |
| Hub Provision | Top / Bottom hub opening optional |
| Grounding | Ground / Neutral provision available |
| Cover Type | Lockable Cover |
| Application | Residential / Light Commercial |
| Certification | UL Listed / Certification Pending |
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
The file is not available yet. Please contact us for assistance.
| Parameter | Specification |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Phase | 1 Phase |
| Frequency | 60Hz |
| Number of Positions | Single Position |
| Jaw Configuration | 4-Jaw |
| Socket Type | Ringless optional |
| Bypass Type | Non-Bypass / Horn Bypass optional |
| Mounting Type | Surface Mount |
| Enclosure Material | Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Terminal Type | Mechanical Lug |
| Conductor Range | Al/Cu, as required |
| Hub Provision | Top / Bottom hub opening optional |
| Grounding | Ground / Neutral provision available |
| Cover Type | Lockable Cover |
| Application | Residential / Light Commercial |
| Certification | UL Listed / Certification Pending |

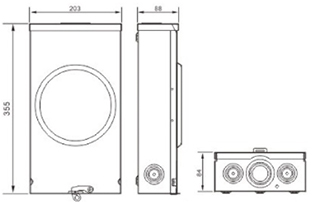

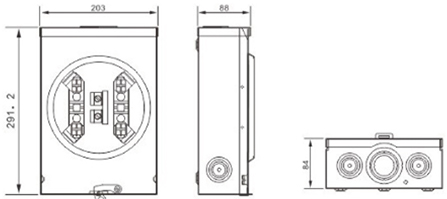

Parameter Drawing
 |
 |
| (Dimensions) | (Dimensions) |
